Brand Name : | Merrock |
Model Number : | S12-650 |
Certification : | CE |
Price : | USD 2500-3500 |
Payment Terms : | Western Union, MoneyGram, T/T |
Supply Ability : | 20 |
Delivery Time : | 30 |
12 Heads 3 Phase 380V / 440V 15HP Terrazzo Floor Grinding Machine
Application:
15HP Terrazzo Floor Grinding Machine In Three Phase 440V With 12
Heads it's for stone leveling, stone polishing and grinding, concrete polishing
and grinding, also apply to remove the old coat of epoxy etc...
Quick Detail:
Name | 15HP Terrazzo Floor Grinding Machine In Three Phase 440V With 12 Heads | Application | Marble, granite, terrazzo, concrete floor |
Type | S12-650 | Function | Leveling, polishing, grinding, renovating |
Description:
The performance of diamond tools is crucial to effectively perform
the grinding process. Follow the steps below to calculate the
performance of a diamond tool:
Measure rather than estimate the area to be sanded.
Find grind time by subtracting any rest time from your total work
time.
Divide the total square footage (ground) by the total grinding
time.
For example, if you divide 10,000 square feet by 10 hours, you see
a production rate of 100 square feet per hour. Understanding a
tool's performance can give you a clear picture of its
productivity. Plus, it helps you manage your grinding operations
more easily.
Model | S12-650 | S12-650 | |||
Phase | 3 | 3 | |||
Voltage | 380V | 380V | |||
Power | 13HP/9.5KW | 15HP/11KW | |||
Inverter | 15HP/11KW | 15HP/11KW | |||
Speed | 0-1500rpm | ||||
Work width | 650*650mm | ||||
Heads | 12 pieces | ||||
Grinding plate | 4 pieces | ||||
Water tank | 30L | ||||
NW(KG) | 366/435 | ||||
GW(KG) | 416/485 | ||||
Packing size(CM) | 110x70x134cm |

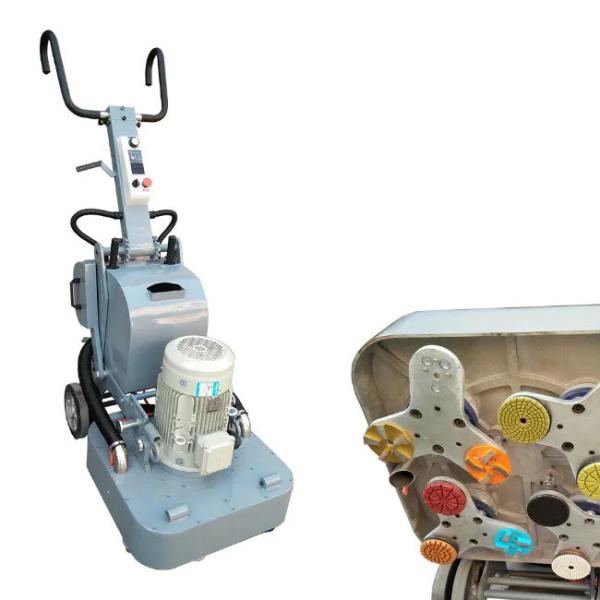

Detail picture:
1.15HP Terrazzo Floor Grinding Machine In Three Phase 440V With 12
Heads with luminum alloy die-casts one body base plate.
2. It can use the dry and wet resin polishing pads, metal diamond
grind blades.
Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble,
granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Packing:
Carton with iron frame
Size: 76*65*132cm
S12-S6
concrete grinder.pdf
