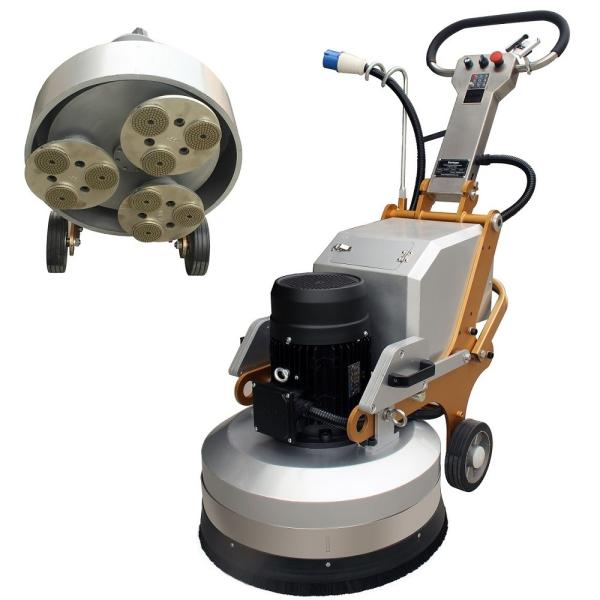

CONCRETE FLOOR GRINDERS – PLANETARY 550MM
MERROCK
Profile.pdf
It uses All-aluminum alloy gearbox and gear-drive planetary head
reduce noise and improve surface flatness.
The S-shape shelf design allows for a larger angle to be seen when
changing the grinding disc,and the grounding is more stable.
Iron block transforms the center of gravity through the slider,not
only increase the weight of the machines,but also help you lift the
bottom and carry it easily.
Quick Specifications:
| Name | Terrazzo Grinder | Application | Marble, granite, terrazzo, concrete floor |
| Type | S9-X-220B | Function | Leveling, polishing, grinding, renovating |
Description:
- With super high efficiency
- With planetary system best for stone grinding and polishing
- With Three 3 heads, each of them fix 3 pieces polishing pads,
each time need fix 9 pieces polishing pads.
- with adjustable Handle, so easy to control.
- With inverter that could adjust the speed from 0 to 1500 rmp.
- Easy to handle and super portable
Application:
Stone/Marble/Concrete/Terrazzo/Granite leveling, floor polishing
and grinding, also apply to remove the old coat of epoxy etc...
Specification:
| Type | S9-X-220B |
| Voltage | 220V-240V |
| Motor | 5.5KW |
| Speed | 0-1500 rpm |
| Body weight | 200KGS |
| Work width | 550mm diameter |
| Water tank | 30L |
| Grinding plate | 9 heads |
Detail picture:
Resin pads:
Larger grinders are designed for the operator to walk behind,
pushing the grinder slowly along the floor. Once the grinder makes
one pass, the operator slowly moves it backward, moving it from
side to side to ensure even grinding. The next pass overlaps the
first by about half. Grinding the floor can take many passes, and
depending upon how smooth you want to make it, can require the user
to progressively change the grinding disk from a low, coarse grit
to a high one. Many changes are necessary for a polished floor, but
since you will be applying a coating rather than polishing, this is
unlikely to be necessary. A hand grinder has a smaller diameter and
is suitable for grinding close to the wall or for smoothing down
bumpy areas before you use the large grinder. It is also possible
to simply use a hand grinder for the entire project, though this
may take more time.
Grinding concrete is an integral part of floor refurbishing. Many
experienced floorers will use a concrete floor grinder this year to
update a garage, renovate a basement, or
refinish a patio. While it may seem like just one concrete floor
grinder will do, each tool is designed for specific jobs and
processes.
How can you know which grinder to choose? With so many options,
both experts and DIYers may struggle to find the best tool for the
job at hand. No one likes to pay someone else
to fix their mistake, so it's crucial to get the guidance you need
and pick the right grinder the first time.
Whether you're prepping concrete for staining, changing a
flooring's exposure, or leveling a floor after repairing cracks,
you'll need a concrete grinder to finish the job.
Here's everything you need to know to get the best concrete floor
grinder for your business.
