| Model | MRK-V6-220B | MRK-V6-380B |
| Phase | 1 | 3 |
| Voltage | 220V | 380V |
| Power | 5.5HP/4KW | 5.5HP/4KW |
| Inverter | 5.5HP/4KW | 5.5HP/4KW |
| Speed | 0-1500rpm |
| Working width | 310*550mm |
| Grinding Heads | 6 pieces |
| Grinding plate | 2 pieces |
| Water tank | 30L |
| NW(KG) | 170+20 |
| GW(KG) | 230 |
| Packing size(CM) | 76x66x134cm |
Detail picture:

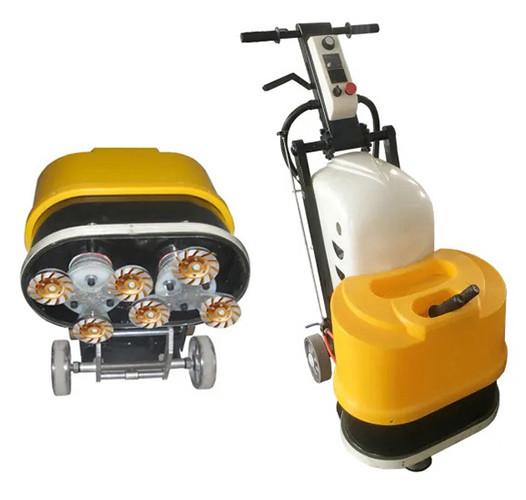

4KW Single Phase 240V Granite Marble Terrazzo Concrete Floor
Grinder For Warehouse
Machine with vacuum interface
Available abrasive:
Diamond resin pads
1. Wet polising pads are for wet grinding and polishing the marble,
granite, terrazzo and concrete floor.
2. Dry polishing pads are for dry grinding and polishing the
marble, granite, terrazzo and concrete floor.
3. Renavation pads are for wet grinding and polishing the marble,
granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete, terrazzo and epoxy floor.
Metal diamond grinding discs for concrete, terrazzo and epoxy floor.
Metal diamond grinding blades for concrete, terrazzo and epoxy
floor.
Solution for terrazzo:
1. Grinding blade J009 50#, 100# for grinding.
2. Wet polishing pad R-1 50#, 150#, 300#, 500# for grindnig.
3. Dry polishing pad G-1 800#, 1500# for polishing.
Packing:
Carton with iron frame
Packing size: 76*65*132cm
V6-V12
concrete grinder.pdf
Tag: terrazzo floor polishing machine, marble floor grinder
The Characteristics of Diamond Polishing Pads
The diamond polishing pad is a flexible processing tool made of
diamond as abrasive and combined with composite materials. The back
is glued with Velcro, which is stuck on the joint of the grinder
for grinding and polishing. It is used for grinding stone,
ceramics, glass, and floor tiles, etc. And it can also be used for
processing, repair and renovation of marble, concrete, terrazzo,
artificial stone, glazed tiles, and vitrified tiles.
The diamond polishing pad has the advantages of strong grinding
force, durability, good flexibility and good gloss. It is an ideal
stone polishing tool. The processing process is divided into coarse
grinding, fine grinding and polishing.
The characteristics of diamond polishing pads
Made of special material
It is a flexible material made of diamond as abrasive, combined
with composite materials and processed. Therefore, after it is
made, due to the particularity of the material, it has very strong
performance and characteristics. so that it can be used to complete
the task in many field.
Wide range of applications
It is widely used in all aspects of the construction industry. At
present, it is mainly used for stone polishing, various floor
treatment, etc, but also for processing marble, terrazzo, cement
pavement, countertops, etc. The scope of application getting wider
and wider, and the effect is very obvious.
Good performance
Due to the special materials, it has the advantages of strong
grinding force, good durability, good softness, bright clarity,
strong gloss, etc. Relying on its own good performance, it has
become an ideal stone grinding tools used in all areas of society.
Good using effect
After polishing with diamond polishing pads, it can be und that the
gloss will be significantly improved after the whole process is
done, and the surface is very smooth.
