Marble Granite Terrazzo 3000W 220V Concrete Edge Grinding Machine
MERROCK
Profile.pdf
Quick Detail:
| Name | 3000W 220V Concrete Edge Grinding Machine For Marble Granite
Terrazzo Concrete Floor | Application | Marble, granite, terrazzo, concrete floor |
| Type | S3-300 | Function | Leveling, polishing, grinding, renovating |
Description:
3000W 220V Concrete Edge Grinding Machine For Marble Granite
Terrazzo Concrete Floor is used to grind the edge of floor and the
angle of floor.
1. S3-300 with the multifunction plate which with magnetic, it's
suitable for all kinds of pads, blade, like velcro-back or metal
wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads
(blades).
3. With vacuum cleaner interface could install a vacuum cleaner
outside.
4. It's widely apply to all kinds of floor, such as marble,
granite, terrazzo, concrete floor, natural stone floor and rostone
floor etc.
5. It's easy to control and has stable performance, best for corner
and edge.
Application:
3000W 220V Concrete Edge Grinding Machine For Marble Granite
Terrazzo Concrete Floor it's for stone leveling, stone polishing and grinding, concrete polishing
and grinding, also apply to remove the old coat of epoxy etc...
Specification: catalog-grinder polisher.pdf| Model | S3-300 |
| Voltage | 380V-460V | 220V-240V |
| Power | 4HP/3KW | 4HP/3KW |
| Inverter | 5.5HP/4KW | 5.5HP/4KW |
| Speed | 0-1500 rpm | 0-1500 rpm |
| Work width | 300mm | 300mm |
| Water tank | Without | Without |
| Heads | 3 pieces | 3 pieces |
| Grinding plate | 1 pieces | 1 pieces |
| NW | 105KGS | 105KGS |
| GW | 125KGS | 125KGS |
| Packing size | 75*45*91cm | 75*45*91cm |

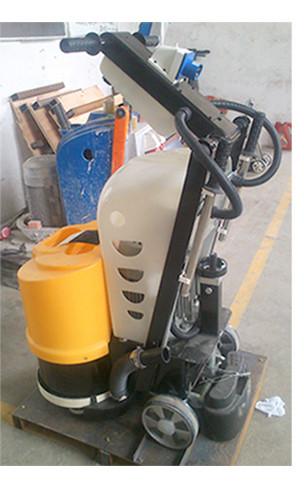

Detail picture:
1. 3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Floor, it mainly uses to grind and polish the wall corner,
edge, the plate of machine can against the wall.
2. The dry and wet resin polishing pads, metal diamond grind blades
are all available for the machine S3-300.
Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble,
granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
Diamond grinding shoes (J007/J007B) for concrete terrazzo and epoxy floor
Metal diamond grinding discs (J008) for concrete terrazzo and epoxy floor
Metal diamond grinding blades (J013) for concrete terrazzo and
epoxy floor
Packing:
Carton with iron frame
Size: 750*450*910mm
catalog-grinder polisher.pdf
Tag: angle floor
grinder, granite
floor grinding machine
How to Grind the Soft Concrete?
Grinding soft concrete requires 'hard bond' grinding discs that
resist the metal matrix being eroded away. The sandy, gritty,
abrasive dust will erode diamond grinding discs abnormally fast, so
be certain that you are using the right diamond grinding disc. More
than any other time, grinding soft concrete is when contractors
need to be aware of the signs of rapid grinding and fast wear to
stop work and rectify the problem.
Things need to noted when grinding soft concrete
1.Inspect your diamond tooling regularly for unusually high diamond
exposure.This means that when you run your finger over the surface
the diamond grit is sticking out a lot.The diamond grit will
befalling out of the matrix before you have had a chance to wear
them out.
2.Use diamond tooling with a hard bond and or more segments to
grind. And be certain to remove the machine weights during grinding
to reduce the weight on the diamond tooling.
3.Use a vacuum that will extract dust away as quickly as
possible.This will greatly improve the life of the diamond tooling.
If there is a lot of dust rolling between the floor and segments,
it will cause excessive wear of the diamond tooling.
Tips for grinding soft concrete
● Do not use the cheapest diamond grinding disc and expect to save
money, it becomes an expensive exercise. A premium diamond grinding
disc is usually the best value for money.
● Reduce the weight on the head of the machine as much as possible
to ensure that the sandy, gritty, abrasive dust that is rolling
around under the segments does not erode the matrix any more than
necessary.
