300*300mm 15A 3KW Concrete Angle Grinding Machine Single Phase
MERROCK
Profile.pdf
Quick Detail:
| Name | Single Phase 3KW Manual Concrete Angle Grinding Machine Polisher
With Led Light | Application | Marble, granite, terrazzo, concrete floor |
| Type | S3-300 | Function | Leveling, polishing, grinding, renovating |
Description:
Single Phase 3KW Manual Concrete Angle Grinding Machine Polisher
With Led Light is used to grind the edge of floor and the angle of
floor.
1. Single Phase 3KW Manual Concrete Angle Grinding Machine Polisher
With Led Light with the multifunction plate which with magnetic,
it's suitable for all kinds of pads, blade, like velcro-back or
metal wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads
(blades).
3. With vacuum cleaner interface could install a vacuum cleaner
outside.
4. It with water tank can wet and dry grinding.
5. It's apply to marble, granite, terrazzo, concrete floor, natural
stone floor and rostone floor etc.
6. It's easy to control and has stable performance.
Application:
Single Phase 3KW Manual Concrete Angle Grinding Machine Polisher
With Led Light it's for stone leveling, stone polishing and
grinding, concrete polishing and grinding, also apply to remove the
old coat of epoxy etc...
| Model | S3-300 |
| Voltage | 380V-460V | 220V-240V |
| Motor Power | 4HP | 3KW |
| Inverter Power | 4KW | 5.5HP |
| Speed | 0-1500 rpm | 0-1500 rpm |
| Work width | 300mm | 30cm |
| Heads | 3 pieces | 3 pieces |
| Grinding plate | 1 pieces | 1 pieces |
| NW | 105KGS | 105KGS |
| GW | 125KGS | 125KGS |
| Packing size | 100x47x114cm | 100x47x114cm |
Detail picture:

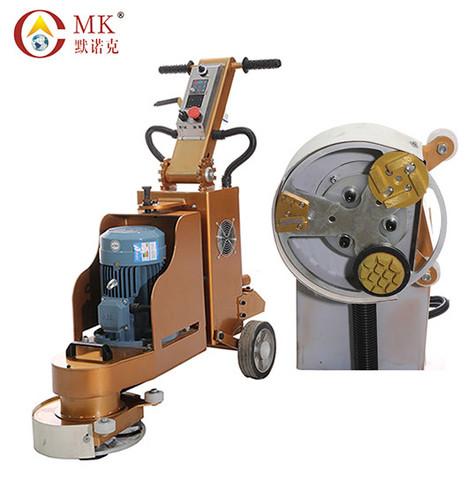

1. Single Phase 3KW Manual Concrete Angle Grinding Machine Polisher
With Led Light, it mainly uses to grind and polish the wall corner, edge, the
plate of machine can against the wall.
2. Dry and wet resin polishing pads is suitable for machine S3-300,
it also can use the metal diamond grind blades.
Available abrasive:
Diamond resin pads
1. Wet polishing pad (R-1) for wet grinding and polishing for
concrete floor.
2. Dry polishing pad (G-2) for dry grinding and polishing for the
marble, granite, terrazzo afloor.
3. Renovation pad (F-22) for wet grinding and polishing for the
marble, granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Packing detail :
Carton with iron frame
Size: 750*450*910mm
catalog-grinder polisher.pdf
Tag: concrete floor
grinder, marble
floor grinding machine
Causes of Wave Patterns After Floor Grinding
After some floors are ground, sometimes they will have obvious wave
patterns when viewed from the side light. These wave patterns are
like ripple marks after the wind blows over the water surface,
forming some height differences. It not only means that there is a
problem with the flatness of the floor, but also has a great
influence on the decorative effect of the floor.
The height difference of the seams
The difference in height of the seam is the cause of wave pattern
after the partial floor grinding. When paving, the joints of the
two plates are not aligned, and there is a difference in height.
For the alignment of the other joints, the entire plate will be in
a warped state, with one side high and the other low. After
grinding in this way, local wave patterns will be formed.
The paving process is unreasonable
When a large area, obvious wave pattern appears in an area, it is
generally caused by the overall paving process. When paving a large
area, workers sometimes use the drawing method to pave. That is,
nylon thread is used to draw the line in the construction area, and
then along the line to determine the horizontal position and high
and low position of the paving. But this lack of precision method
has some problems.
The selection of grinding discs
Grinding disc is also the cause of the wave pattern on the floor,
which is easy to be overlooked by many people. For the overall
grinding of the floor, generally using the number segment
"50→100→200→400→800→1500→3000". Among them, the first four number
segments have a grinding force, which plays a decisive role in the
overall flatness. The reason is that floor is an inhomogeneous
material, and the hardness of each part of its surface is
different, and the degree of wear resistance is also different.
When grinding, small abrasives will quickly slide from the hard
part to the soft part of the floor under the pressure and speed of
the grinder, causing the soft part to grind deeply, but at the same
time the hard part is scratched and under-grinding, which caused
local wave patterns.
The selection of grinder
In the choice of grinder, the larger the width, the better the
leveling effect. And the larger the coverage area, the larger the
polishing area, so that it is less prone to wave patterns.
