| Model | S12-700 | S12-700 |
| Phase | 3 | 3 |
| Voltage | 380V | 380V |
| Power | 15HP/11KW | 20HP/15KW |
| Inverter | 15HP/11KW | 20HP/15KW |
| Speed | 0-1500rpm |
| Work width | 70*70cm |
| Heads | 12 pieces |
| Grinding plate | 4 pieces |
| Water tank | 30L |
| NW(KG) | 480/500 |
| GW(KG) | 530/550 |
| Packing size(CM) | 1100x700x1340mm |

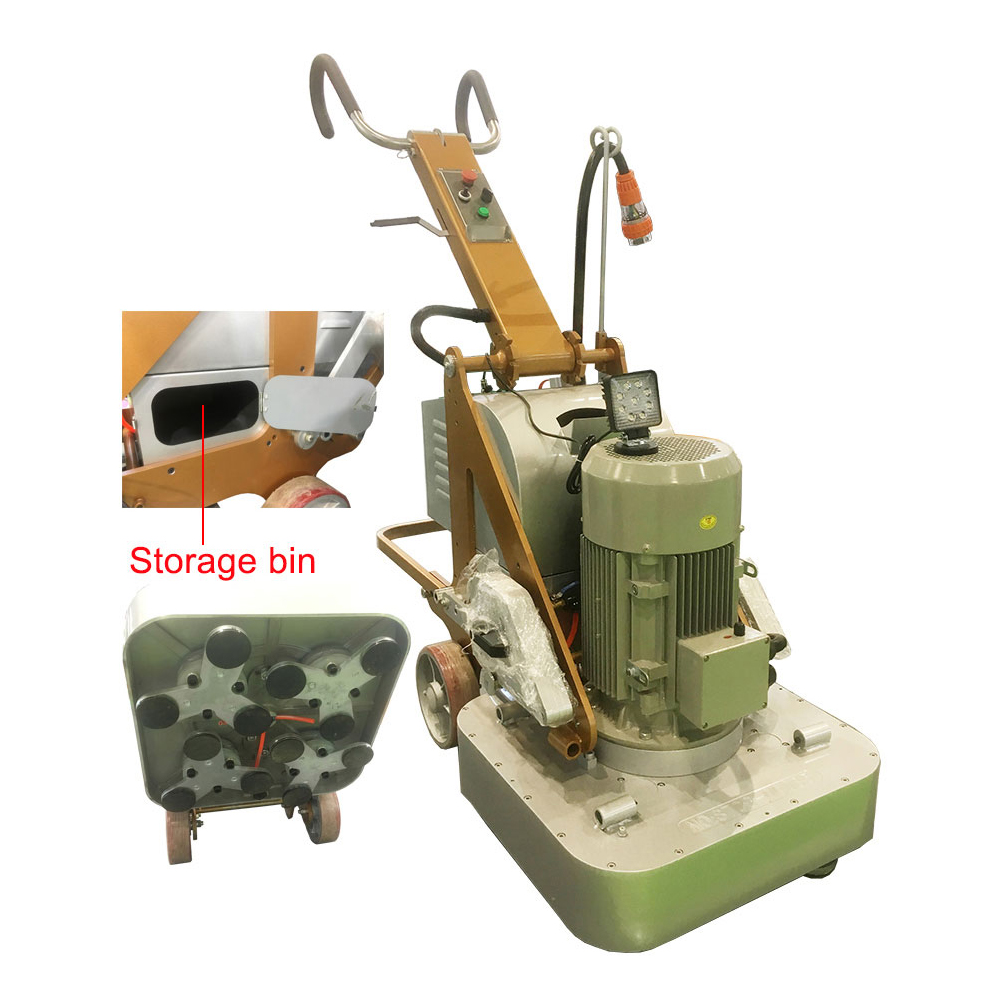

Detail picture:
1. Three Phase 20HP 30L Water Tank Warehouse Concrete Polishing
Machine with luminum alloy die-casts one body base plate.
2. It can use the dry and wet resin polishing pads, metal diamond
grind blades.
3. Use helical gear to reduce the machine noise.
4. With storage bin can put the tools inside the machine.

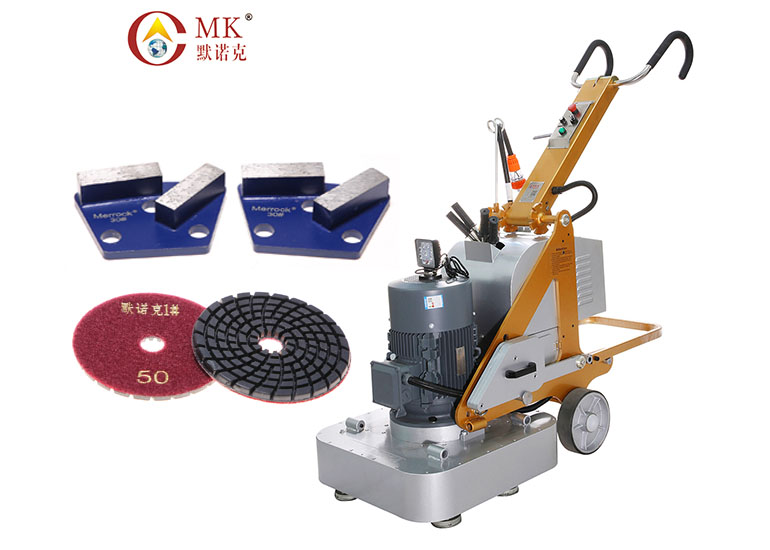

Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble,
granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Tips:
What is a Grinding Wheel?
A grinding wheel is a precision tool with thousands of cutting
points on its surface, abrasive grains that are held in place by a
bond matrix (hence these are known as bonded abrasives) and
separated by pores. These pores are hollow spaces between abrasive
grains and the bond , which help with the clearance of discarded
metal chips in the grinding process. When the wheel is in use, the
abrasive grains cut into the material that is being ground,
removing the unwanted surface material in small chips.
During grinding, the cutting points on the abrasive grains are worn
flat and becoming increasingly blunt. At the same time, the
increased friction causes a build-up of heat, which fractures the
abrasive grain and exposes new cutting edges or begins to
disintegrate the bond bridges that hold the abrasive grains in
place.
In normal vitrified grinding, the wheel has to be dressed using a
dressing tool. By varying the properties of the abrasive, the type
of bond, the wheel’s construction, it is possible to produce
grinding wheels with a vast range of different grinding
characteristics.
