310*550 mm Granite Terrazzo Concrete Floor Polisher Single Phase
220V For Hotel
MERROCK
Profile.pdf
Quick Detail:
| Name | 310*550 mm Granite Terrazzo Concrete Floor Polisher Single Phase
220V For Hotel | Application | Marble, granite, terrazzo, concrete floor |
| Type | MRK-V6-220B | Function | Leveling, polishing, grinding, renovating |
Description:
1. 310*550 mm Granite Terrazzo Concrete Floor Polisher Single Phase
220V For Hotel designed for big industrial floor area grinding with high
efficiency and competitive price
2.Elegant appearance, central control.
3.6pcs head cover a large area to promote the working efficiency.
4.Good effect in stone leveling,marble, granite and concrete grinding and polishing.
5.It can adjust the speed from 0-1500 rpm to meet different
people's demand.
6.Two kinds of voltage in 220V (220-240V) or 380V (380V-420V) for
clients' option.
7.To satisfy customers who for concrete grinding need connect the
vacuum cleaner, we can add a connector for vacuum cleaner on the
machine.
8.It can use the pads which with velcro or with screw.
9.Use high quality motor and frequency changer make sure the
machine high in quality.
Application:
For stone, marble, granite, terrazzo floor leveling, stone , marble, granite, terrazzo floor polishing and grinding, concrete polishing and grinding, also apply
to remove the old coat of epoxy etc...
| Model | MRK-V6-220B | MRK-V6-380B |
| Phase | 1 | 3 |
| Voltage | 220V | 380V |
| Power(HP) | 5.5HP/4KW | 5.5HP/4KW |
| Inverter(KW) | 5.5HP/4KW | 5.5HP/4KW |
| Grinding Speed | 0-1500rpm |
| Work width | 310*550mm |
| Heads | 6 pieces |
| Grinding plate | 2 pieces |
| Water tank | 30L/Yellow color |
| NW(KG) | 170+20KG |
| GW(KG) | 230 |
| Packing size(CM) | 76x66x134cm |

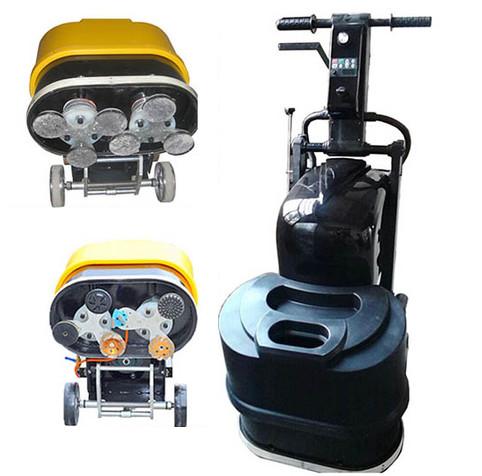

Detail picture:
310*550 mm Single Phase 220V Granite Terrazzo Concrete Floor
Polisher with vaccum interface
Available abrasive:
Diamond resin pads
1. Wet polishing pad (R-0) for wet polishing and grinding the
marble, granite, terrazzo and concrete floor
2. Dry polishing pad (G-1) for dry polishing and grinding the marble, granite, terrazzo and concrete
floor
3. Renovation pad (F-21) for wet polishing and grinding the marble,
granite, terrazzo and concrete floor
Diamond grinding shoes (J007B) for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Packing:
Carton with iron frame
Size: 76x66x134cm
V6-V12
concrete grinder.pdf
What is Diamond Grinding?
Polished concrete is a craft that tends to be misunderstood. Often
when people hear about polished concrete, they assume it is
achieved through the application of a topical product or that it
defines a cleaning process that makes the floor appear shiny.
However, neither of these accurately describe the process of
mechanically refined polished concrete. Polished concrete is a
detailed, labor and skill-intensive process that requires highly
specialized tooling and training to produce. One of the numerous
tools required in this process is a grinder with diamond tooling.
Nowadays, most of the concrete grinding is performed by diamonds.
This process is called as “diamond grinding”. Grinding concrete
with diamond tooling is a mechanical process that renews worn or
irregular concrete surfaces. It uses specialized tooling to produce
a smoother surface and reduce concrete failures such as joint
faults, warped slabs, and traffic wear. Due to the power needed to
grind concrete, the diamond tools can quickly overheat during a wet
grind process. Overheating is prevented by cooling the machine with
water. However, this means a slurry is produced from the grinding
and water excreted but the slurry is removed and disposed of. Dry
grinding is also done with an air-cooled system. Both options can
achieve the same desired result.
