Application:
For marble quartzite floor leveling, marble granite floor polishing
and grinding, concrete terrazzo floor polishing and grinding, also
apply to remove the old coat of epoxy etc...
| Model | MRK-V6-220B | MRK-V6-380B |
| Phase | One | Three |
| Voltage(V) | 220V | 380V |
| Power | 5.5HP/4KW | 5.5HP/4KW |
| Inverter(KW) | 5.5HP/4KW | 5.5HP/4KW |
| Speed | 0-1500rpm |
| Work width | 310*550mm |
| Heads | 6 pieces |
| Grinding plate | 2 pieces |
| Water tank | 30L/Yellow |
| NW(KG) | 170+20 |
| GW(KG) | 230 |
| Packing size(CM) | 76x66x134cm |

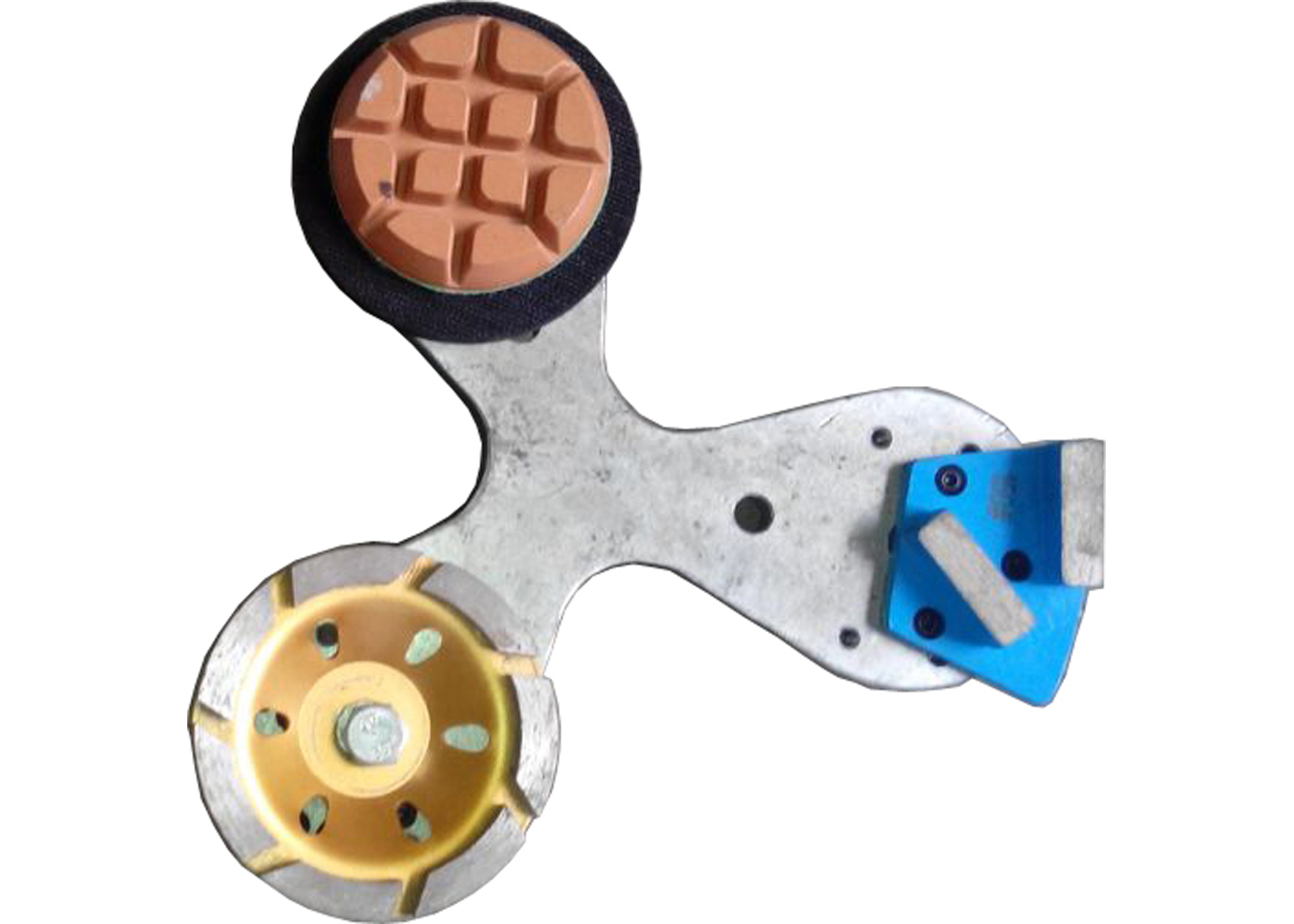

Detail picture:
Available abrasive:

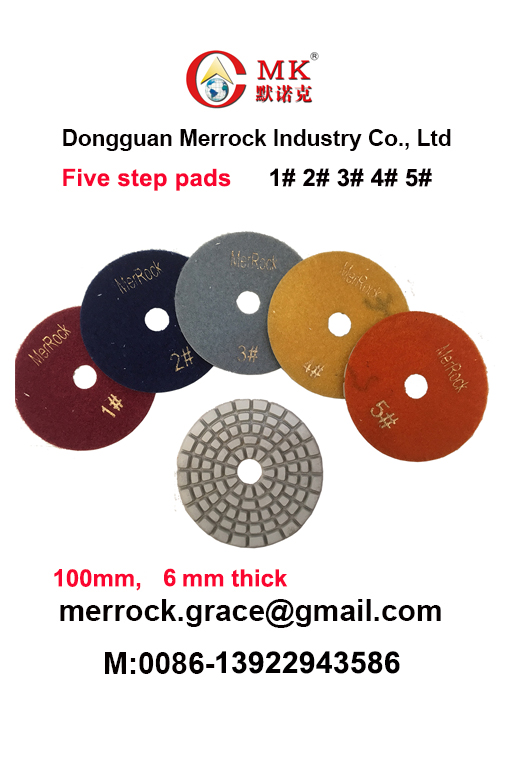

Diamond resin pads
1. Wet polishing pad is for wet grinding and polishing marble,
granite, terrazzo and concrete floor.
2. Dry polishing pad is for dry grinding and polishing marble,
granite, terrazzo and concrete floor.
3. Novation pad is for wet grinding and polishing marble, granite,
terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor.
Metal diamond grinding discs for concrete terrazzo and epoxy floor.
Metal diamond grinding blades for concrete terrazzo and epoxy floor.
Packing:
Carton + iron frame
Size: 76x66x134cm
V6-V12
concrete grinder.pdf
Tag: stone
floor polishing machine, concrete
floor grinding machine
What is Diamond Grinding?
Polished concrete is a craft that tends to be misunderstood. Often
when people hear about polished concrete, they assume it is
achieved through the application of a topical product or that it
defines a cleaning process that makes the floor appear shiny.
However, neither of these accurately describe the process of
mechanically refined polished concrete. Polished concrete is a
detailed, labor and skill-intensive process that requires highly
specialized tooling and training to produce. One of the numerous
tools required in this process is a grinder with diamond tooling.
Nowadays, most of the concrete grinding is performed by diamonds.
This process is called as “diamond grinding”. Grinding concrete
with diamond tooling is a mechanical process that renews worn or
irregular concrete surfaces. It uses specialized tooling to produce
a smoother surface and reduce concrete failures such as joint
faults, warped slabs, and traffic wear. Due to the power needed to
grind concrete, the diamond tools can quickly overheat during a wet
grind process. Overheating is prevented by cooling the machine with
water. However, this means a slurry is produced from the grinding
and water excreted but the slurry is removed and disposed of. Dry
grinding is also done with an air-cooled system. Both options can
achieve the same desired result.
