3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Floor
Quick Detail:
| Name | 3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Floor | Application | Marble, granite, terrazzo, concrete floor |
| Item no. | S3-300 | Function | Leveling, polishing, grinding, renovating |
Feature:
3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Flooris used to grind the edge of floor and the angle of
floor.
The corner machine has a lightweight body and low abrasive loss.
High cutting efficiency, good leveling effect, etc.
1. S3-300 with the multifunction plate which with magnetic, it's
suitable for all kinds of pads, blade, like velcro-back or metal
wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads
(blades).
3. With vacuum cleaner connector could install a vacuum cleaner
outside.
4. It with water tank can wet and dry grinding.
5. It's apply to marble, granite, terrazzo, concrete floor, natural
stone floor and rostone floor etc.
6. It's easy to control and has stable performance.
7. Adjustable Handle.
Application:
3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Floor it's for stone leveling, stone polishing and grinding, concrete polishing
and grinding, also apply to remove the old coat of epoxy etc...
| Type | S3-300 |
| Voltage (v) | 380-460 | 220-240 |
| Power | 4HP/3KW | 4HP/3KW |
| Inverter | 5.5HP/4KW | 5.5HP/4KW |
| Idling speed | 0-1500 rpm | 0-1500 rpm |
| Work width | 30cm (Diameter) | 300mm (Diameter) |
| Water tank | Without | Without |
| Heads | 3 pieces | 3 pieces |
| Megnatic grinding plate | 1 pieces | 1 pieces |
| NW | 105KGS | 105KGS |
| GW | 125KGS | 125KGS |
| Packing size | 75*45*91cm | 75*45*91cm |
Detail picture:
1. 3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo
Concrete Floor, it mainly uses to grind and polish the wall corner,
edge, the plate of machine can against the wall.
2. It can use the dry and wet resin polishing pads, metal diamond
grind blades.

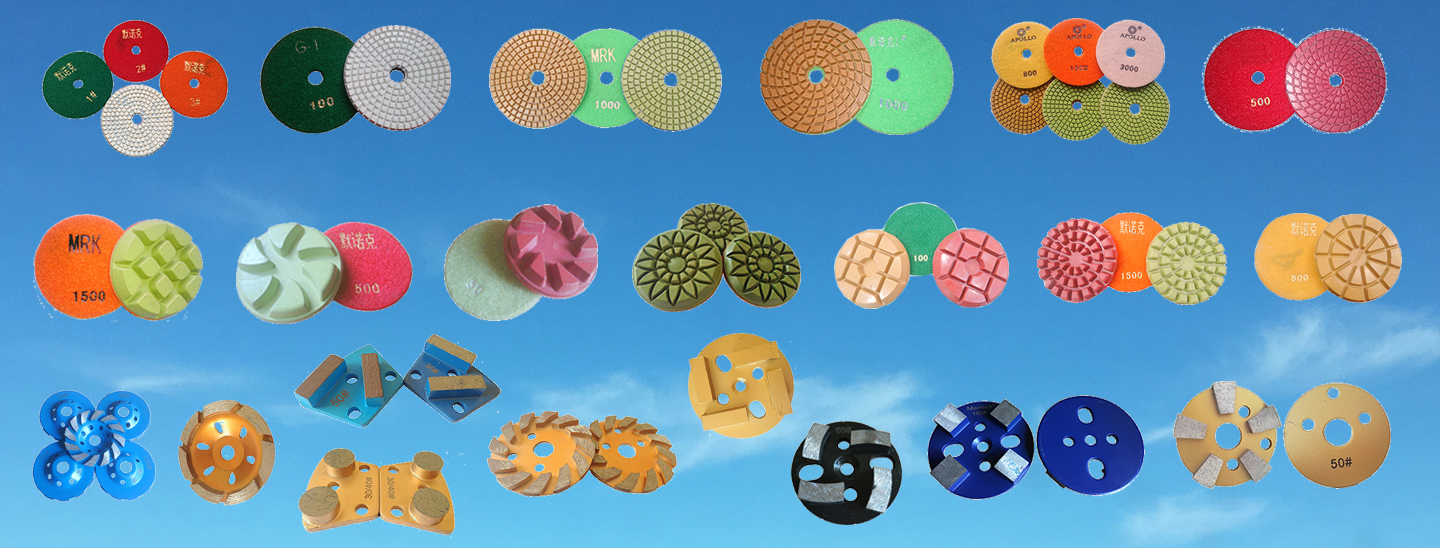

Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble,
granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble,
granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor

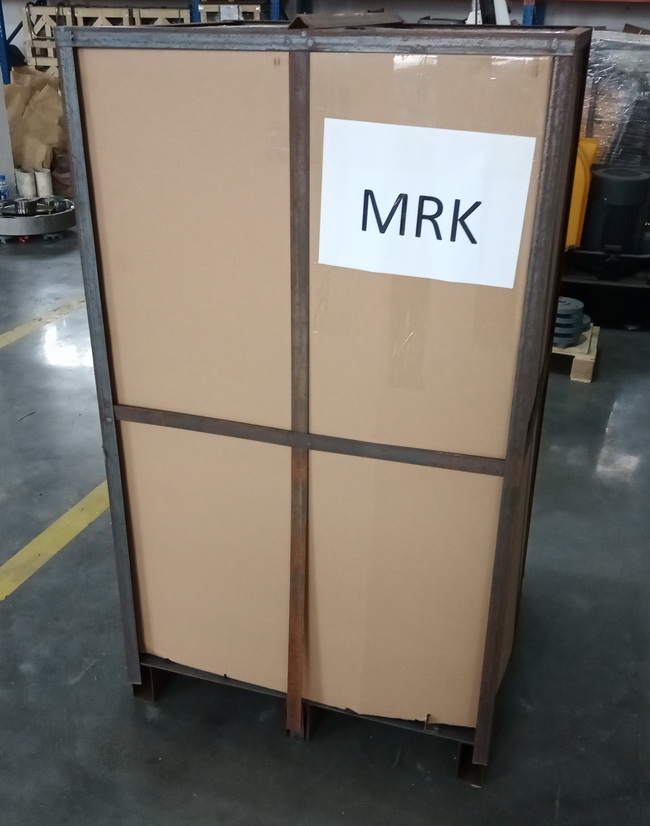

Packing:
Carton with iron frame
Size: 100x47x114cm
