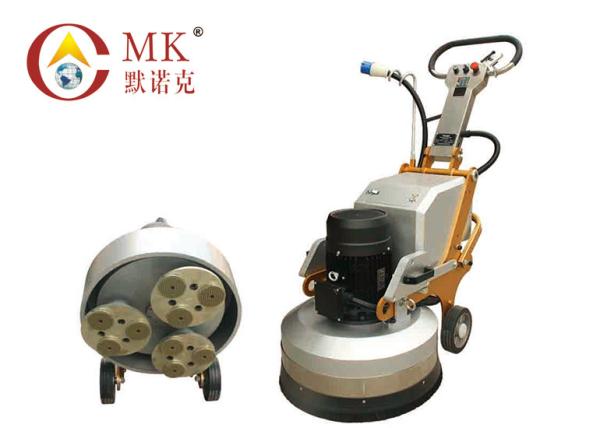

9 Heads Single Phase 4KW Planetary System Marble Floor Polisher
Quick Detail:
| Name | 9 Heads Single Phase 4KW Planetary System Marble Floor Polisher | Application | Marble, granite, terrazzo, concrete floor |
| Type | S9-X9-550 | Function | Leveling, polishing, grinding, renovating |
Description: catalog-grinder polisher.pdf
1. 9 Heads Single Phase 4KW Planetary System Marble Floor Polisher for big industrial floor area grinding with high efficiency and
competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation
easy and safe
4. 9 Heads Single Phase 4KW Planetary System Marble Floor Polisher is a planetary grinder with three counter-rotating grinding heads,
making this a versatile grinder suitable for many different
applications.
5. The grinder can be used for everything from stripping floors to
grinding concrete, natural stone.
6. The motor and chassis can be easily separated, and the chassis
is collapsible for easy handling and transport.
7. High tech grinding machine S9-X-550 with unique and patented
planetary 9-heads driving system, which achieve
the innovation of low maintenance gear driving planetary head
rotation system.
8. Three plates with 9 pieces heads, each time need fix 9 pieces pads
(blades), with planetary three-plate driving system,
S9-X-550 use aluminum alloy die-casts base plate, it's hard and
won't be out of shape, stainless steel water tank.
9. With vacuum cleaner connector could install a vacuum cleaner
outside.
10. It with 10.6L water tank can wet and dry grinding.
Function and feature:
1. Application and function: Stone leveling, stone grinding,
concrete grinding, concrete polishing, epoxy grinding, high-speed
railway beam surface grinding, also apply to remove the old coat
etc., very high efficiency, best effect.
2. 22 inch 3 grinding plates, 9 heads.
3. Small machine with new function.
4. Available in wet and dry.
5. Durable grinding parts.
6. Option power in 4KW and 5.5KW
7. Option voltage in 380V and 220V
Specification:
| Model | S9-X-550 |
| Phase/Voltage | 1/220V |
| Power | 5.5HP/4KW | 7.5HP/5.5KW |
| Inverter | 5.5HP/4KW | 7.5HP/5.5KW |
| Autorotation rate | 0-1250rpm |
| Revolution speed | 0-320 rpm |
| Work width | 550*550mm |
| Heads | 9 pieces |
| Grinding plate | 3 pieces |
| Water tank | 30L | |
| NW(KG) | 200 | 232 |
| GW(KG) | 238 | 276 |
| Packing size(CM) | 93x62x93cm | 98x62x93cm |
Detail picture:
Available abrasive:
Diamond resin pads (Dry polishing pad G-2)
Diamond grinding shoes (J007)
Metal diamond grinding discs (J013)
Metal diamond grinding blades (J008)
Packing:
Wooden case
Size: 93x62x93cm
catalog-grinder polisher.pdf
Tag: planetary concrete floor polishing machine, granite floor polisher
