380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine

    Buy cheap 380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine from wholesalers

    Buy cheap 380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine from wholesalers
    • Buy cheap 380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine from wholesalers
    • Buy cheap 380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine from wholesalers

    380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine

    Ask Lasest Price
    Brand Name : Merrock
    Model Number : S12-700 15KW
    Certification : CE
    Price : USD 2500-3500
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 20
    Delivery Time : 30
    • Product Details
    • Company Profile

    380V 440V 15KW Helical Gear Terrazzo Floor Grinding Machine


    380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine


    Quick Detail:


    Name

    380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine

    ApplicationMarble, granite, terrazzo, concrete, quartzite stone floor
    TypeS12-700 concrete grinderFunctionLeveling, polishing, grinding, renovating

    Description:


    1. Aluminum casting gear box is hard and don't deform, its working efficiency is about 3 pieces of MRK-V12-510.
    2. 380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine is used to produce a smooth finish on flat surfaces for free movement floors.
    3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
    4. 380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine with removable led light can work at night.
    5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
    6. With vacuum cleaner interface could install a vacuum cleaner outside.
    7. With water tank can wet and dry grinding.
    8. It's applied to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
    9. It's easy to control and has stable performance.

    Application:


    380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine it's for quartztite leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...

    ModelS12-700S12-700
    Phasethreethree
    Voltage (V)380V380V
    Power (KW)15HP/11KW20HP/15KW
    Inverter (KW)15HP/11KW20HP/15KW
    Grinding Speed0-1500r per minute
    Work width700 x 700mm
    Grinding Heads12 pieces
    Grinding plate4 pieces
    Water tank30L
    Net weight (KG)480/500
    Gross weight (KG)530/550
    Packing size(CM)1100*700*1340mm

    Feature:


    1. 380V / 440V 15KW Helical Gear Terrazzo Floor Grinding Machine with aluminum alloy die-casts one body base plate.

    2. Use helical to reduce the noise of machine.

    3. It can use the dry and wet resin polishing pads, renovation pad, metal diamond grinding discs.

    4. With storage bin can collect some tools.


    Detail picture:

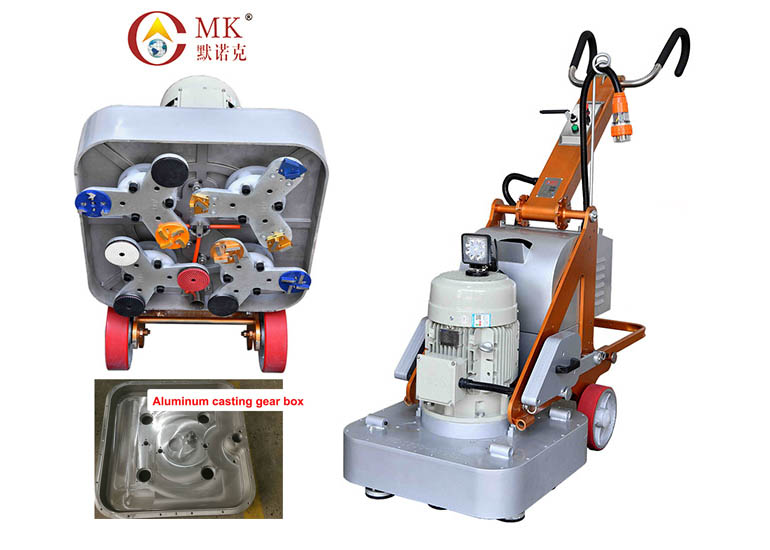

    Use aluminum casting gear box




    Diamond tools for machine:


    Diamond resin polishing pads


    1. Wet polishing pad (R-0, R-1, R-2) for wet grinding and polishing for the quartzite stone, marble, granite, terrazzo and concrete floor.

    2. Dry polishing pad (G-1, G-2) for dry grinding and polishing for the quartzite stone, marble, granite, terrazzo and concrete floor.

    3. Renovation pad (F-22, F-23) for wet grinding and polishing for the quartzite stone, marble, granite, terrazzo and concrete floor.



    Metal diamond grinding shoes (J007, J007B) for concrete terrazzo and epoxy floor

    Metal diamond grinding disks (J008, J009, J010) for concrete terrazzo and epoxy floor

    Metal diamond grinding blades (J007C, J013, J016) for concrete terrazzo and epoxy floor


    Packing detail:


    Carton + iron frame

    Size: 1100x700x1340mm


    S12-S6 concrete grinder.pdf
